Description
Our very affordable Smart Power Packs come with a supercapacitor, giving you several seconds of extra power to keep on running on dirty tracks.

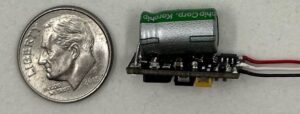

PB1 – Supercapacitor is fitted on top of board.
The white cable is a data cable and you can control the length of the extra power with a CV setting, as well as the charging start time. As these Powerpacks charge quite fast, it is important that you set them at a different charging start moment, if you have more locomotive on your layout with these installed.
The Power Bridge 1 & 2 connect to all Train-O-Matic decoders, ESU decoders with connection for a PowerPack, Lenz Gold with USP connection and any decoder supporting the three wire connection for an energy buffer.

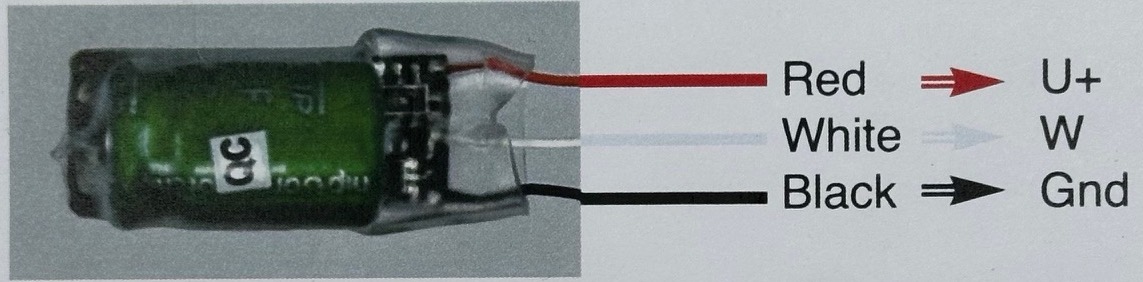

The Power Bridge 1 & 11 may be used as a 2 wire stay alive by connecting the White wire and the Red wire to U+.

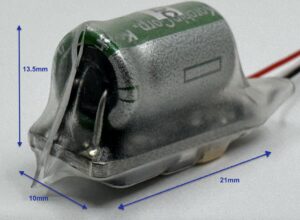

Size: ca 21 x 10 x 13.5 mm 0.83 x 0.38 x 0.63 in
Supercap: 8.2 x 12 mm 0.32 x 0.47 in
Total Capacitance; 1 Farad
